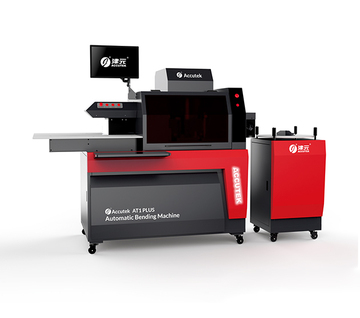

Channel Letter Bending Machine AT1 PLUS

Channel Letter Bending Machine AT1 PLUS

Applicable Material :

Stainless steel, Galvanized Steel, Flat Aluminum, Aluminum Profile


Model Interpretation :

  • Progressive clamp feeding system
  • Double blade alternate bending system
  • Planer cutter and alloy rotary swing milling cutter automatic slotting system
  • Slotting Angle: the smallest slot Angle 60 ° the max slotting Angle 120 °
  • Panasonic servo control system



Key Advantages :

  • Double blade alternate bending system, special designed bending tools rod and tool edge structure, capable of processing with plate and profile. A better choice for small angle and radian bending.
  • Double-cutter slotting, using planer cutter for Stainless steel and Galvanized sheet, using big alloy rotary swing arm milling cutter for Aluminum plate and Aluminum profiles. There is no need to readjust the replacement material.
  • Can be slotted at any angle to avoid the conflict of groove wall when making a sharp angle.


Machine Specification

Feeding System Circulation-typed clamp feeding system
Slotting System Double cutters slotting system/plane and milling cutter
Bending System Double blade alternate bending system

Technical Parameters :

Material Height 20-125mm
Material Thickness Stainless steel/Galvanized Steel/Flat Aluminum1.2MM MAX
Aluminum Profile 1.0MM MAX
Size Accuracy ±0.1mm
Input File Format .dxf
Computer XP system or window7 32-bit system
with a PCI card slot to install the control card.
Power AC220V 50HZ 3.0KW
Air Supply 0.6m³/ MIN
Dimensions Machine L1729*W1000*H1717MM
Feed Tank L550*W597*H1150MM
Total Weight 600KG
