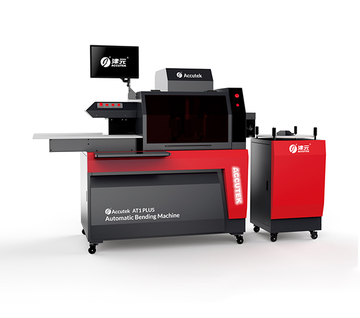

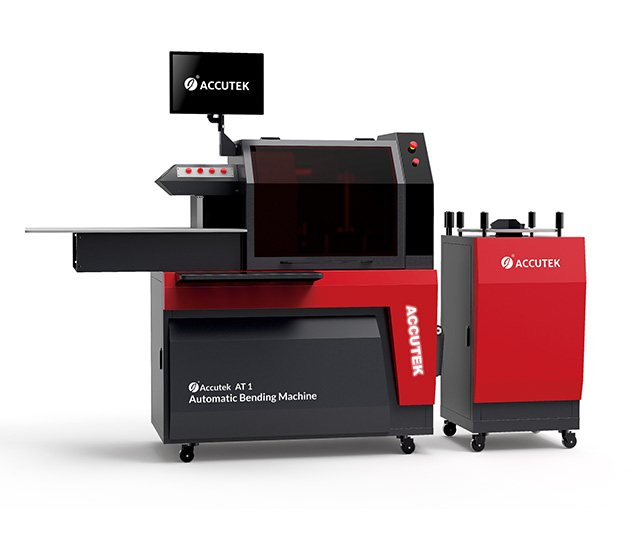

Channel Letter Bending Machine AT1

Easy changeover (software) between aluminum extrusion and stainless steel material.
Need to calibrate only once.
Easy operation, do not need highly skilled labor.
No limitation on letter size.
Aluminum extrusion height. 2” and 3” and Stainless steel material up to 1mm (18 AWG) at different heights.
Panasonic Servo and Step Motor control system.
Imported SMC pneumatic component.

Technical Parameters :

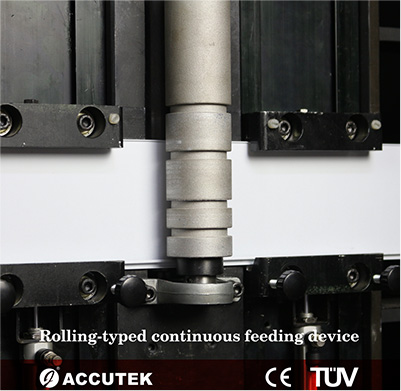

Feeding System	Rolling-typed continuous feeding device and Extrusion feeding

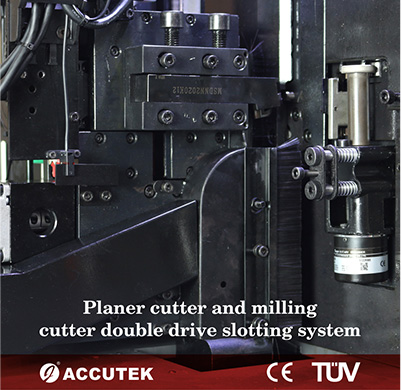

Slotting System	Grinder cutter and Milling cutter double drives slotting system

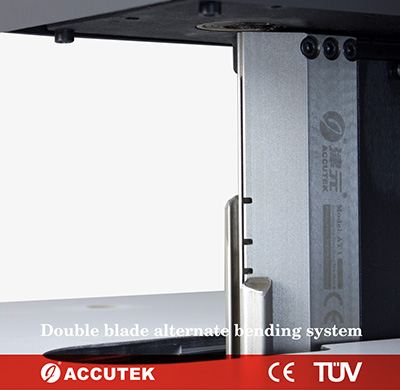

Bending System	Double blade alternate bending system
Suitable Material	Stainless Steel / Galvanized Steel / Aluminum Plate / Aluminum Profile
Material Height	20-125mm
Material Thickness	Stainless Steel / Galvanized Steel ≤1.2mm Aluminum Plate ≤1.2mm Aluminum Profile ≤ 1.0mm
Size Accuracy	±0.1mm
Input File Format	.dxf
Dimensions	Machine L1300W770H1563MM Feed Tank L552W593H1175MM
Power	AC 220V 50HZ 3.0KW
Air Source	0.6m³/MIN
Total Weight	500KGS
