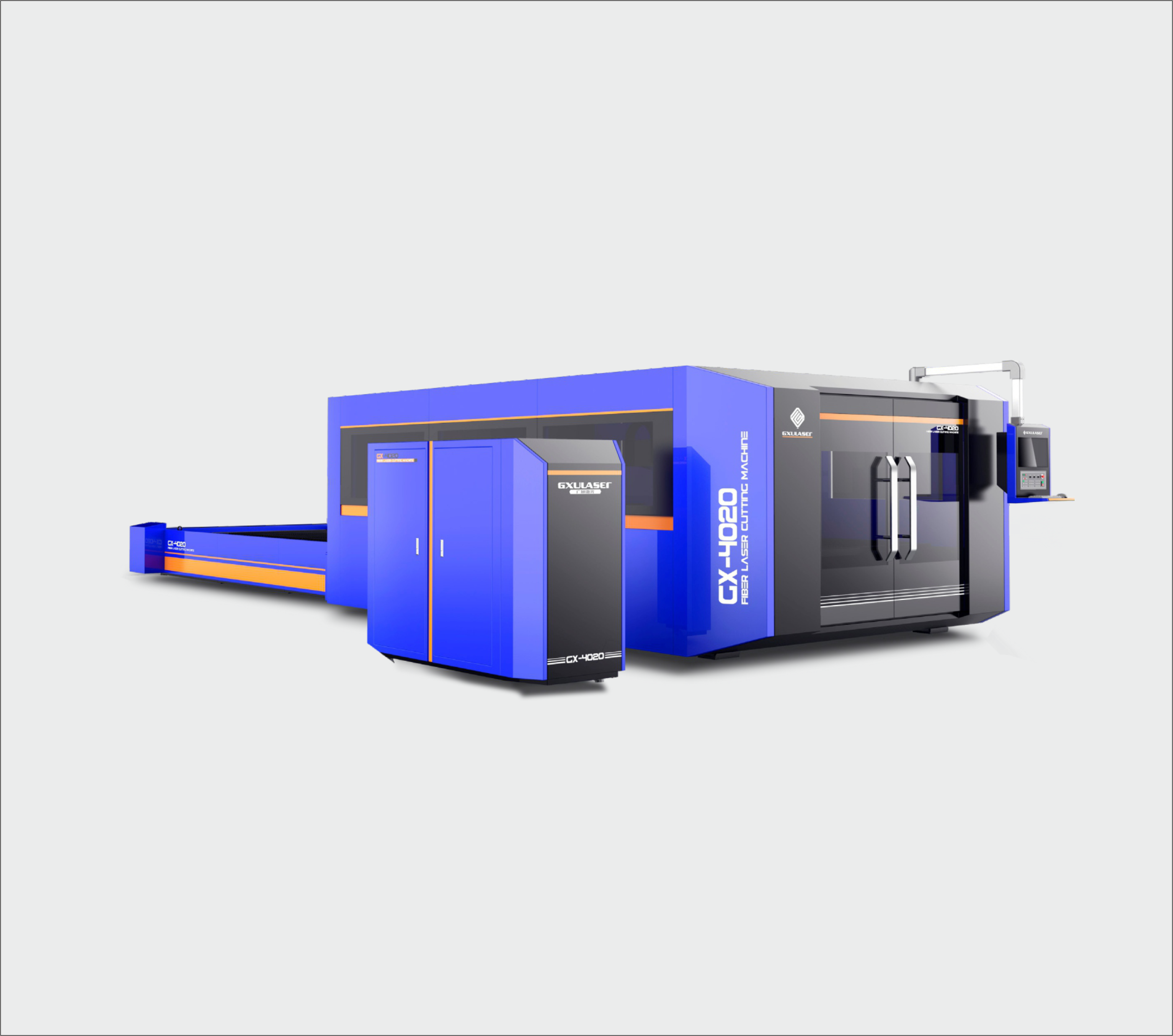

All Cover Exchange Platform Fiber Laser Machine GX-4020AB

All Cover Exchange Platform Fiber Laser Machine GX-4020AB

Machine features :

*  Adopting all covered frame structures to avoid radiation damage to operators. It is equipped with high-efficiency transmission mechanisms such as an imported high-precision racks and linear guides. It has good dynamic performance and fast servo response through the advanced numerical control system. . It achieves higher cutting efficiency with a medium-power fiber laser.

* Adopting gantry structure, the equipment has high precision, good rigidity, and stable operation. The machine tool is equipped with a universal roller device, which is labor-saving and convenient.

* The machine base is made of a high-quality 16mm steel plate and pipe welded frame structure. The machine tool is subjected to the high-temperature annealing treatment, secondary aging treatment, and large-scale gantry milling machine precision machining. These design and processing methods ensure the machine has excellent shock resistance, high rigidity, and stability.

* With a blanking drawer, you only need to pull out the drawer when cleaning the blank.

* With the automatic focusing cutting head, the optimal focal length can be automatically adjusted to ensure the best cutting effect of the whole board.

* The capacitor non-contact automatic following system ensures that the cutting head and the cutting material have the same height, which avoids material scrapping caused by the height variation problem when the material is not flat.

* Using fiber lasers, the electro-optical conversion efficiency is high, the power consumption during operation can be greatly saved, and the running cost is saved; the trimming is less affected by heat, the slit is flat, and generally no secondary processing is required.


Application :

* Widely used in kitchen utensils, advertising signs, lighting hardware, electrical cabinets, auto parts, machinery and equipment, electrical equipment,
aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, sheet metal processing and other metals processing


Technical Parameters :

Fiber Power/ Laser Power Above 1000W
The Laser Wavelength/ The Laser wavelength 1070nm
Min. Line Width 0.1mm
Repeat position Accuracy ±0.05mm
Cutting range/ Cutting range 2000 × 4000mm
Cutting thickness ≥10mm
Aimed and positioning Red light
Power demand/ Power supply 380V/50HZ
Cooling mode/ Cooling mode Water-cooled
Equipment weight/ NW 6000KG
Outline size Length/L (11100mm) Width/W (3300mm) Height/H (2300mm)
