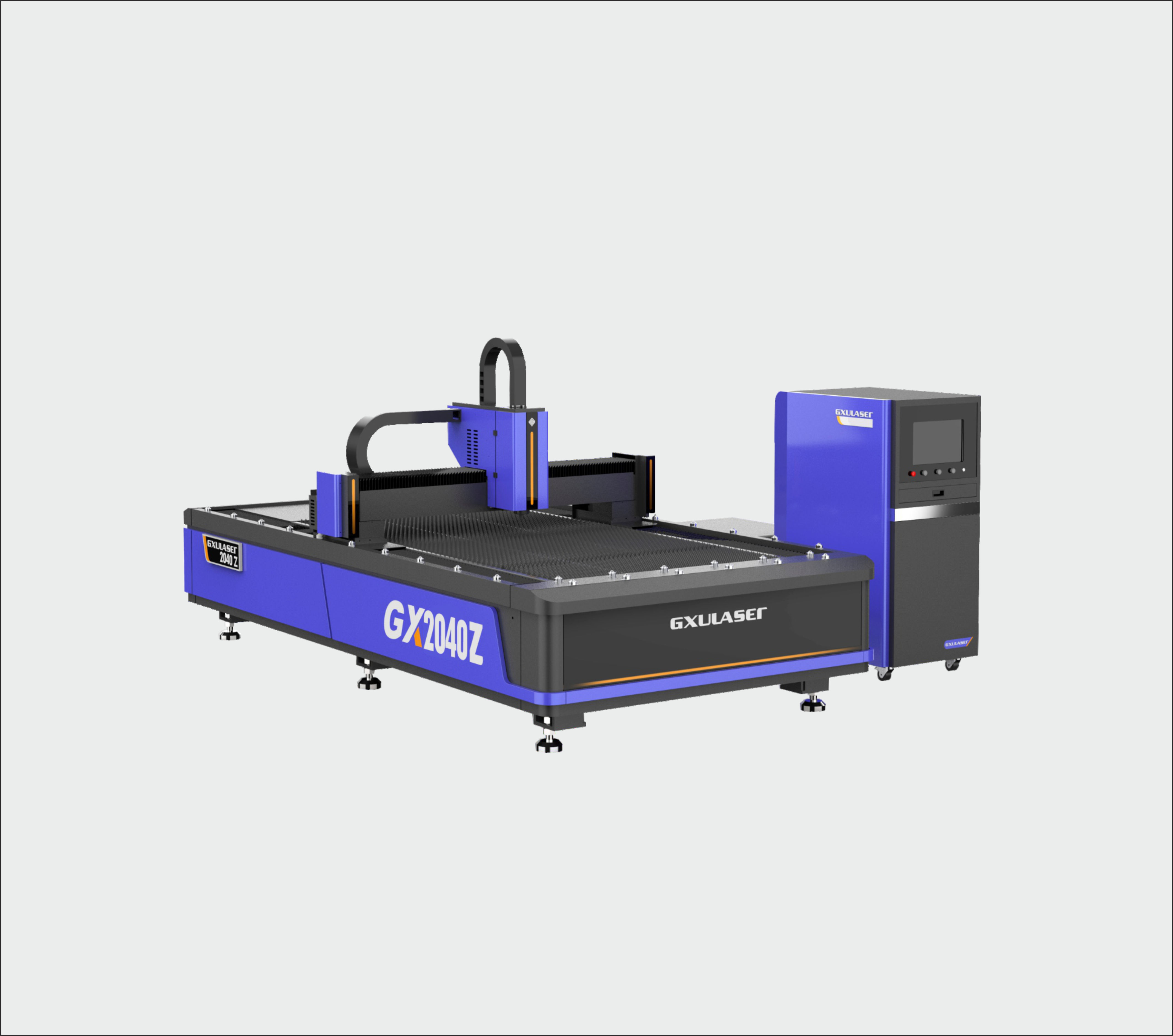

Fiber Laser Cutter GX -2040Z

Fiber Laser Cutter GX -2040Z

Machine features :

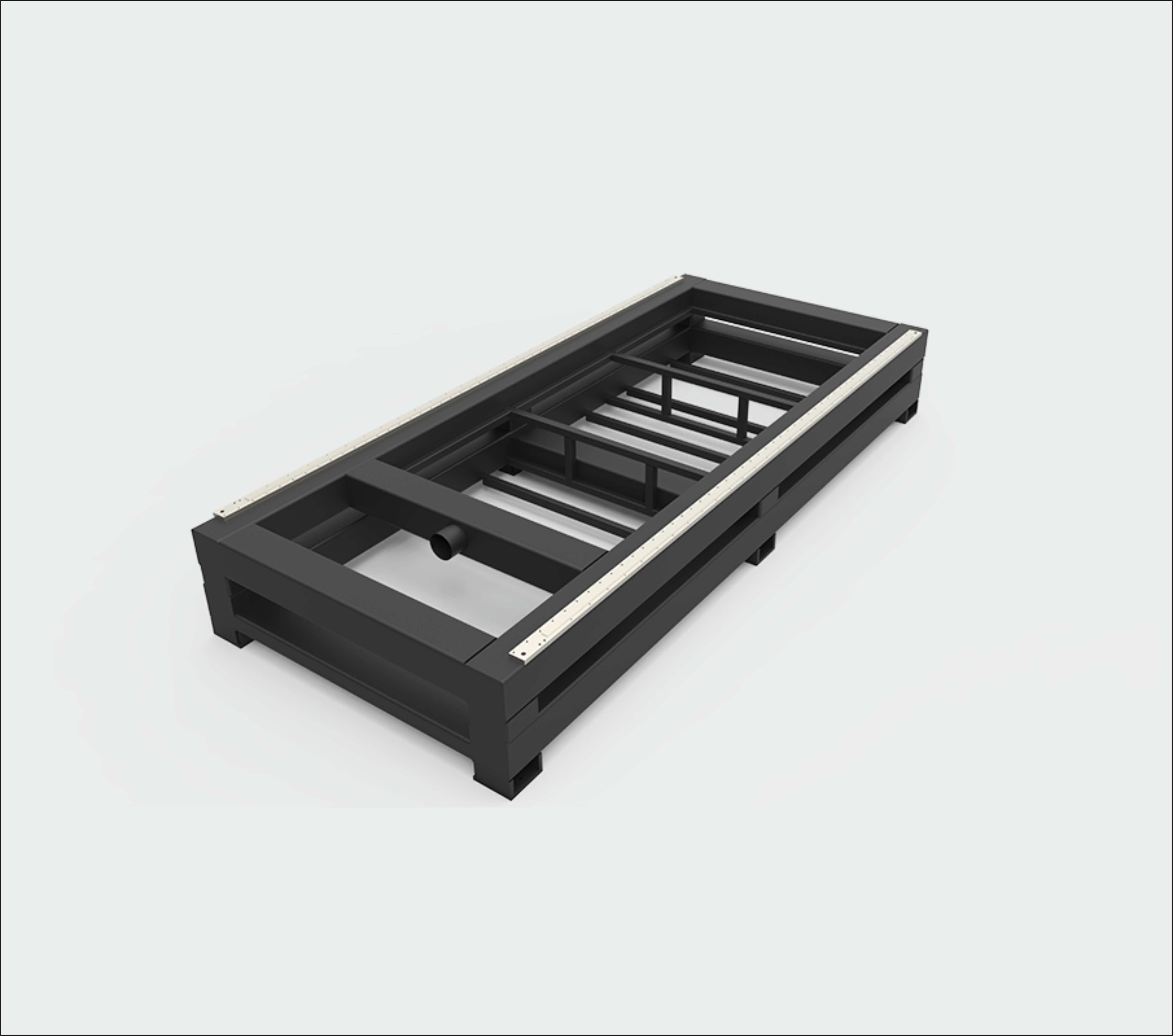

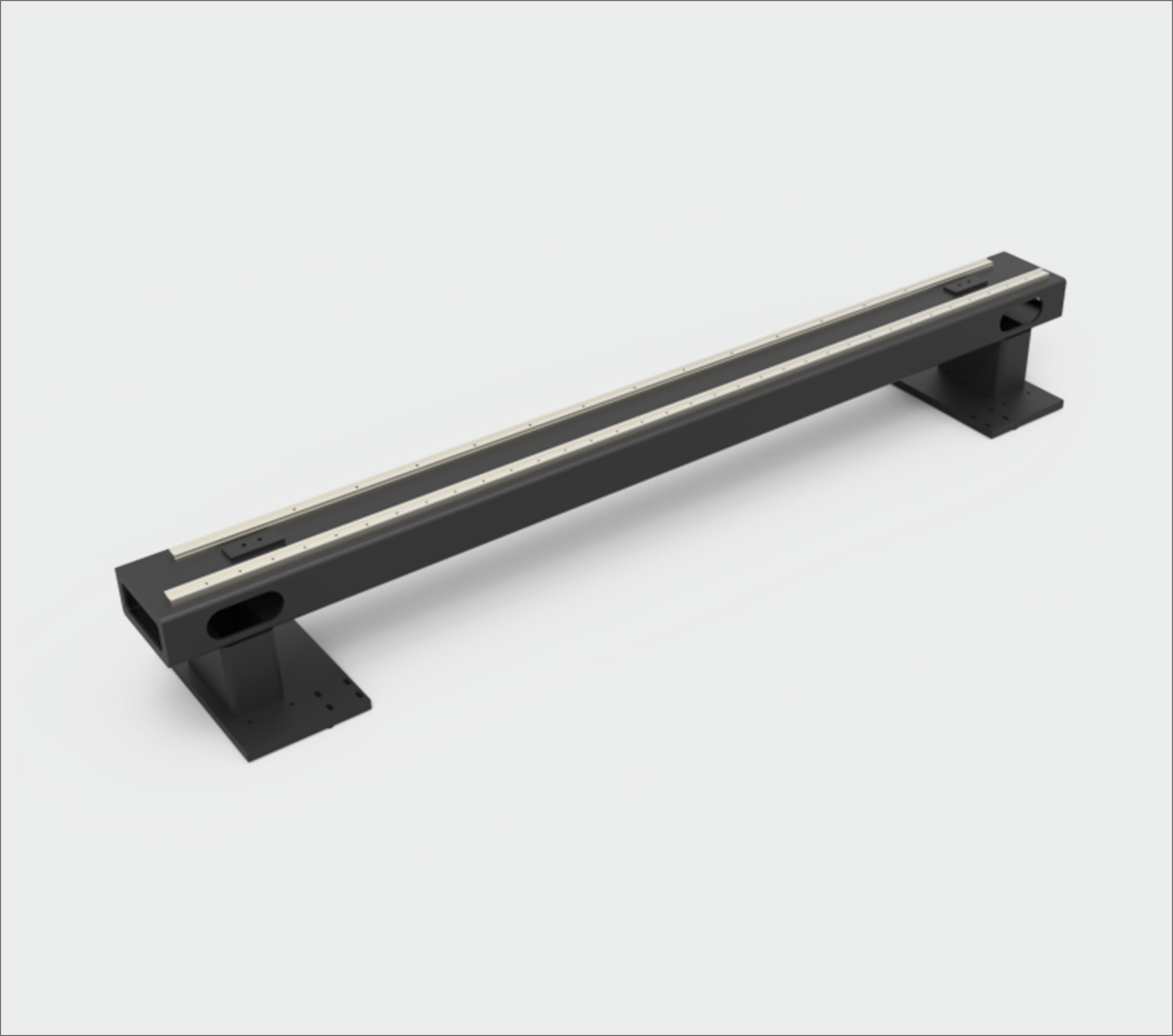

* Industrial welded structure fuselage, rough processing after high-temperature annealing, finishing after secondary vibration aging treatment; cast aluminum beam: heavy-duty steel die pressure casting ensures the strength, precision, and service life of the machine body

* The imported planetary helical gear reducer, high-precision gear rack, and linear guide ensure stable, high noise, and reliable performance in high-speed operation.

* With servo drive control, the torque is stronger, the running speed is faster, and more stable.

* Automatic follow smoke exhaust system, good smoke extraction effect, saving energy.

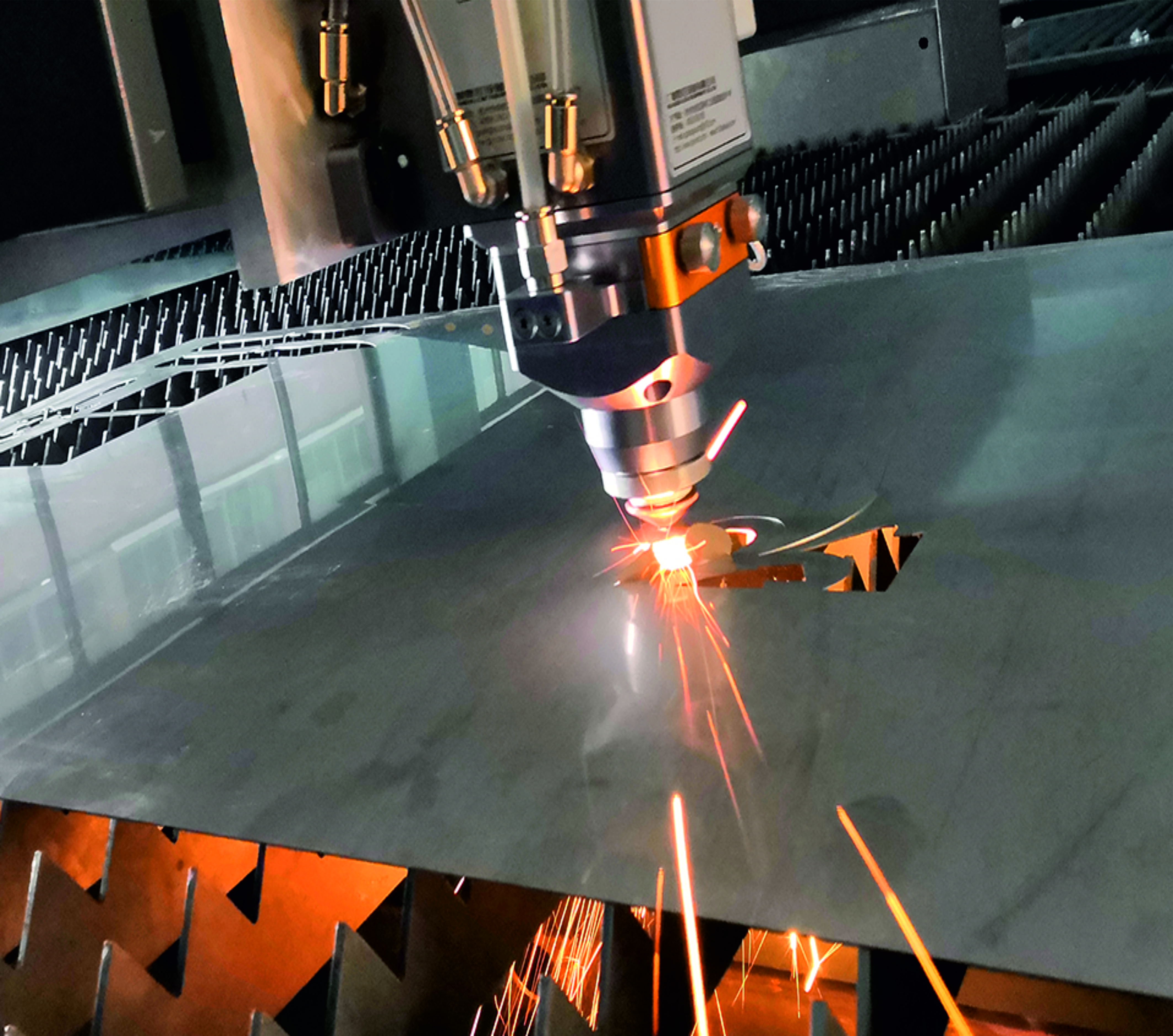

* Adopting high-quality laser cutting head and laser lens, the focusing spot is smaller, the cutting line is finer, the work efficiency is higher, and the processing quality is better; Whole optical routing fiber transmission, no need for complex mirrors and other light guiding systems, the light path is simple, the structure is stable, and the external light path is maintenance-free.

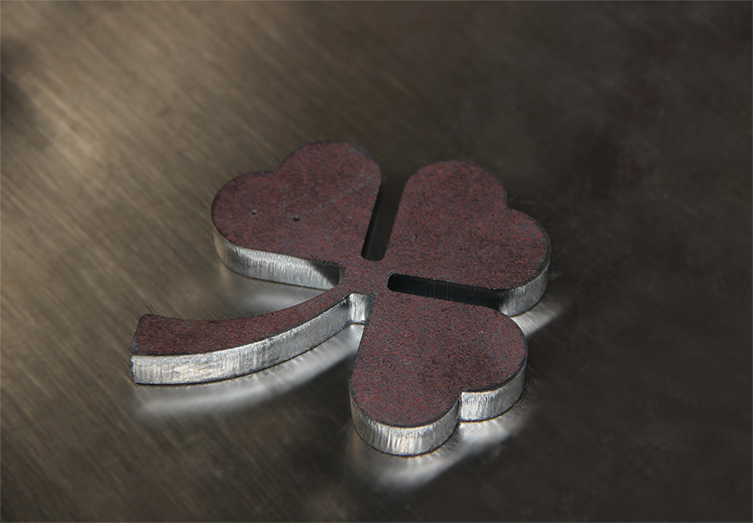

* Adopted the fiber laser, the electro-optical conversion efficiency is high, the power consumption during operation can be greatly saved, and the running cost is saved; the trimming is less affected by heat, the slit is flat, and generally, no secondary processing is required.

* Professional laser cutting CNC control system with intelligent layout function, simpler operation, and higher efficiency.


Application :

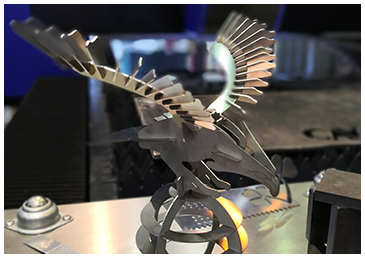

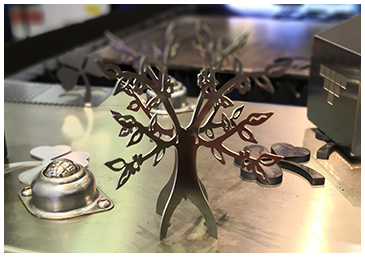

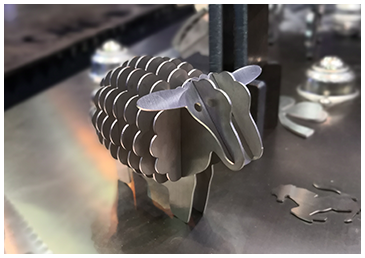

* Widely used in sheet metal processing, kitchen and bathroom, advertising signs, lighting hardware, electrical cabinets, auto parts, machinery and equipment, electrical equipment, aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, and other metal processing industry.


Technical Parameters :


Fiber Power/ Laser Power Above 1000W
The Laser Wavelength/ The Laser wavelength 1070nm


Line Width

Repeat position Accuracy ±0.05mm
Cutting range/ Cutting range 2000 × 4000mm
Cutting thickness 6~16mm
Aimed and positioning Red light
Power demand/ Power supply 380V/50HZ
Cooling mode/ Cooling mode Water-cooled
Equipment weight/ NW 4000KG
Outline size Length/L (4800mm) Width/W (2300mm) Height/H (2100mm)
